Cesium の機能

Cesium とは，３次元の「地図」をウエブブラウザで表示するための JavaScript ライブラリ． Cesiumのチュートリアルの Web ページの説明（の中の一部分）をもとに、Cesium の機能を紹介します。

テライン (Terrain)
テラインで光と水の効果付き (Enabling Terrain Lighting and Water Effects)

先人に感謝

キーワード： Cesium, 3次元地図, JavaScript, 地形（起伏）の表示、光や波の表現

前準備

Cesium の準備

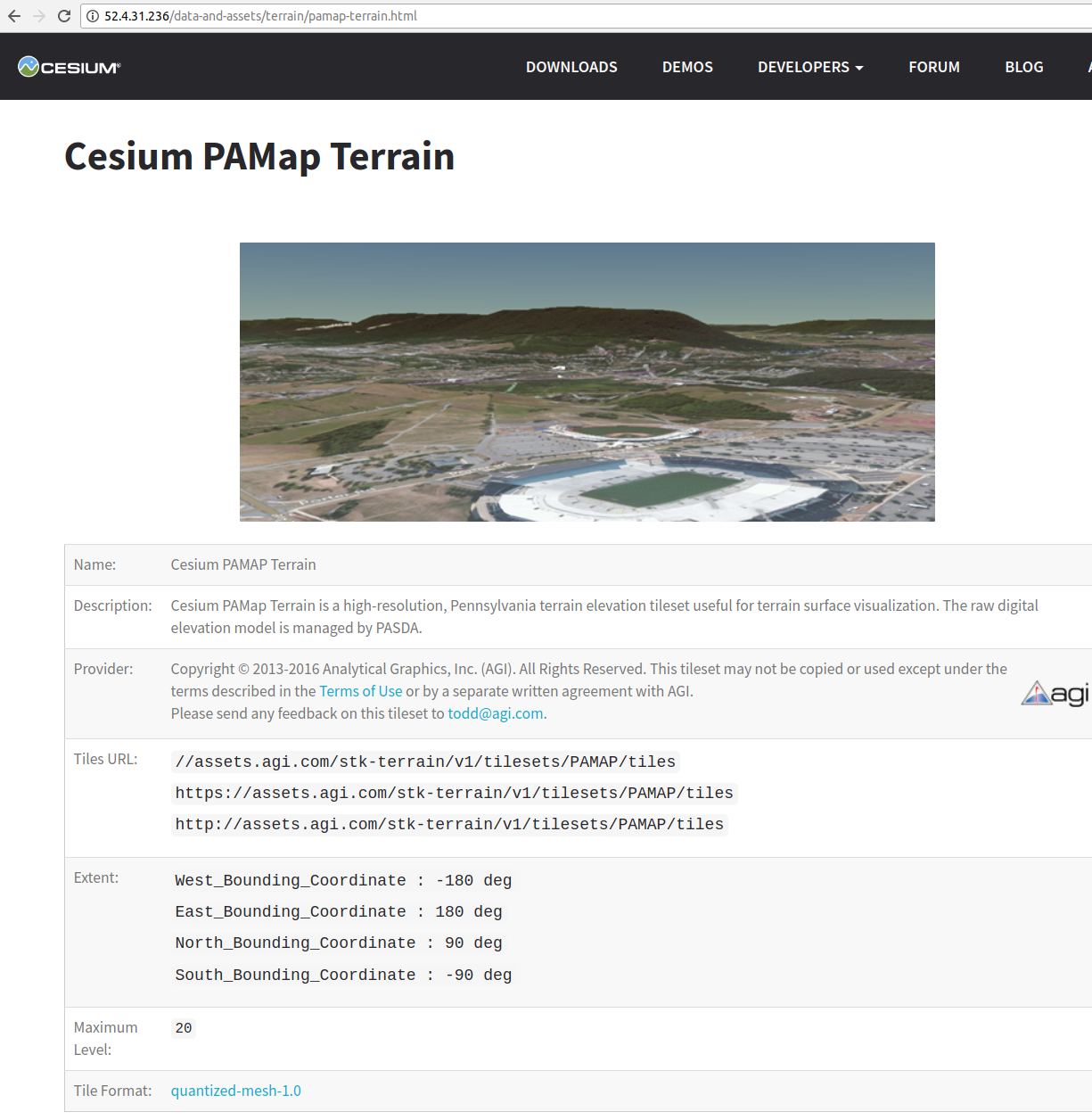

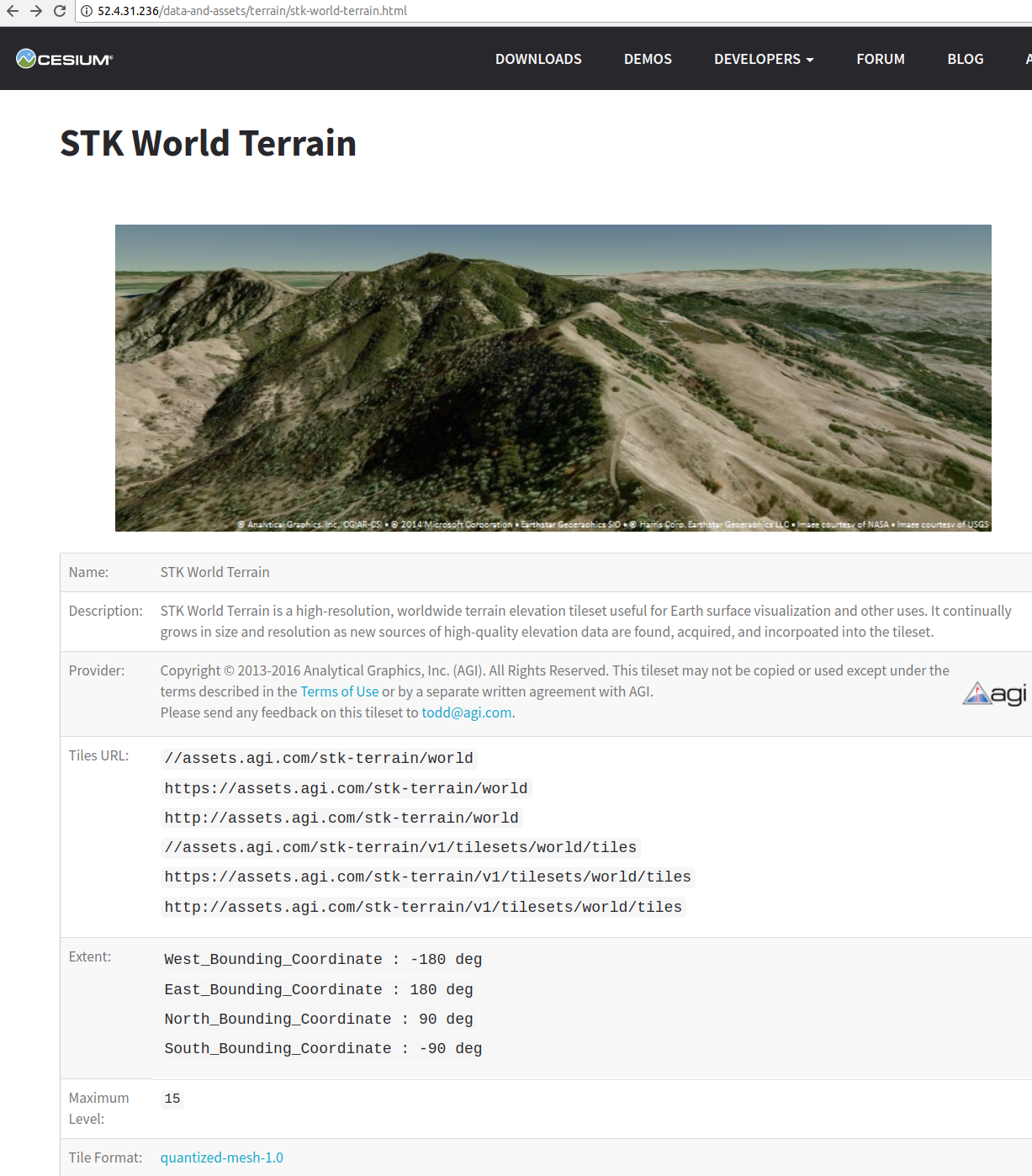

ここには、インターネットアクセスできるテライン・タイルセット (Terrain Tileset) の Web ページを引用します。（先人に感謝）

テライン (Terrain)

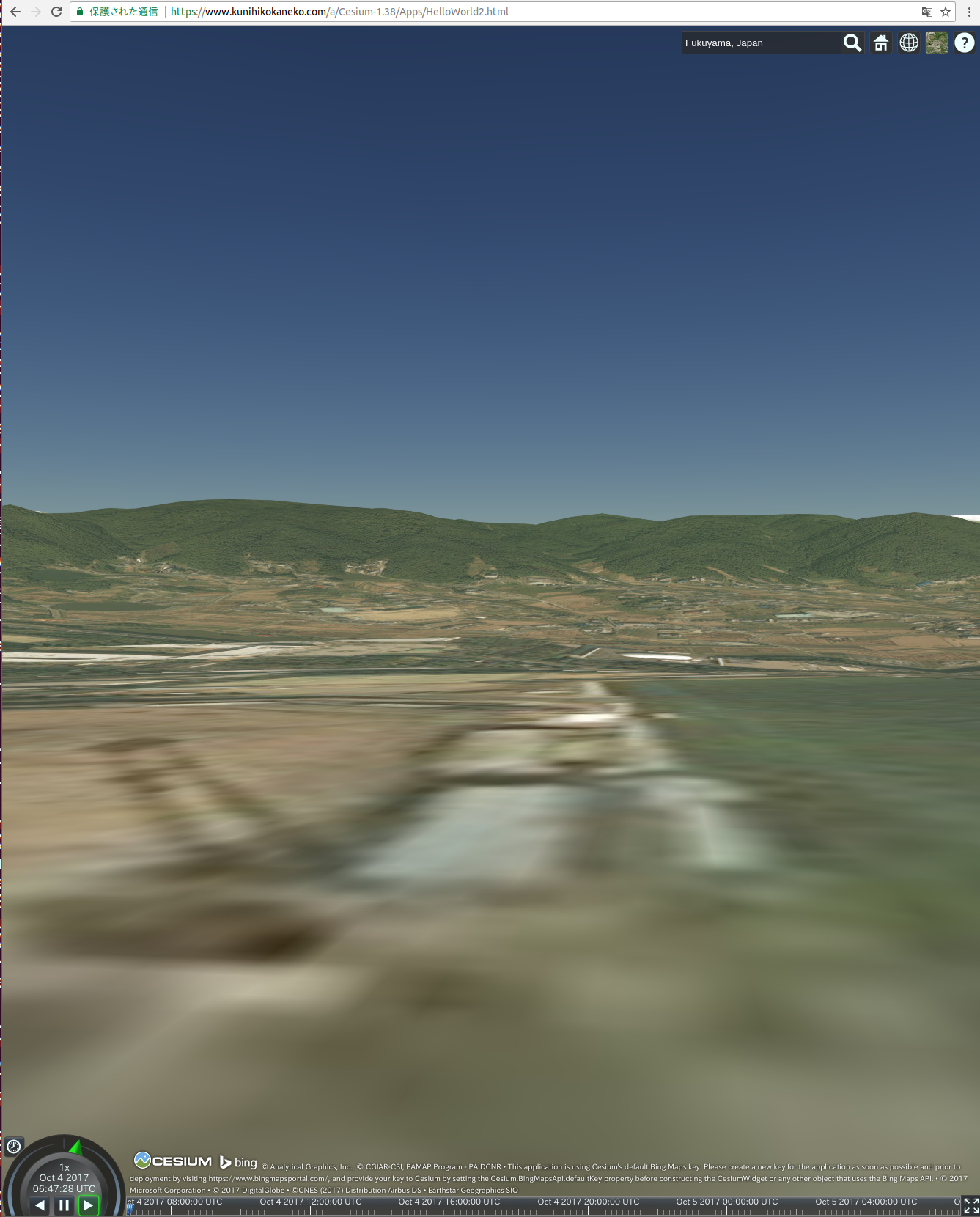

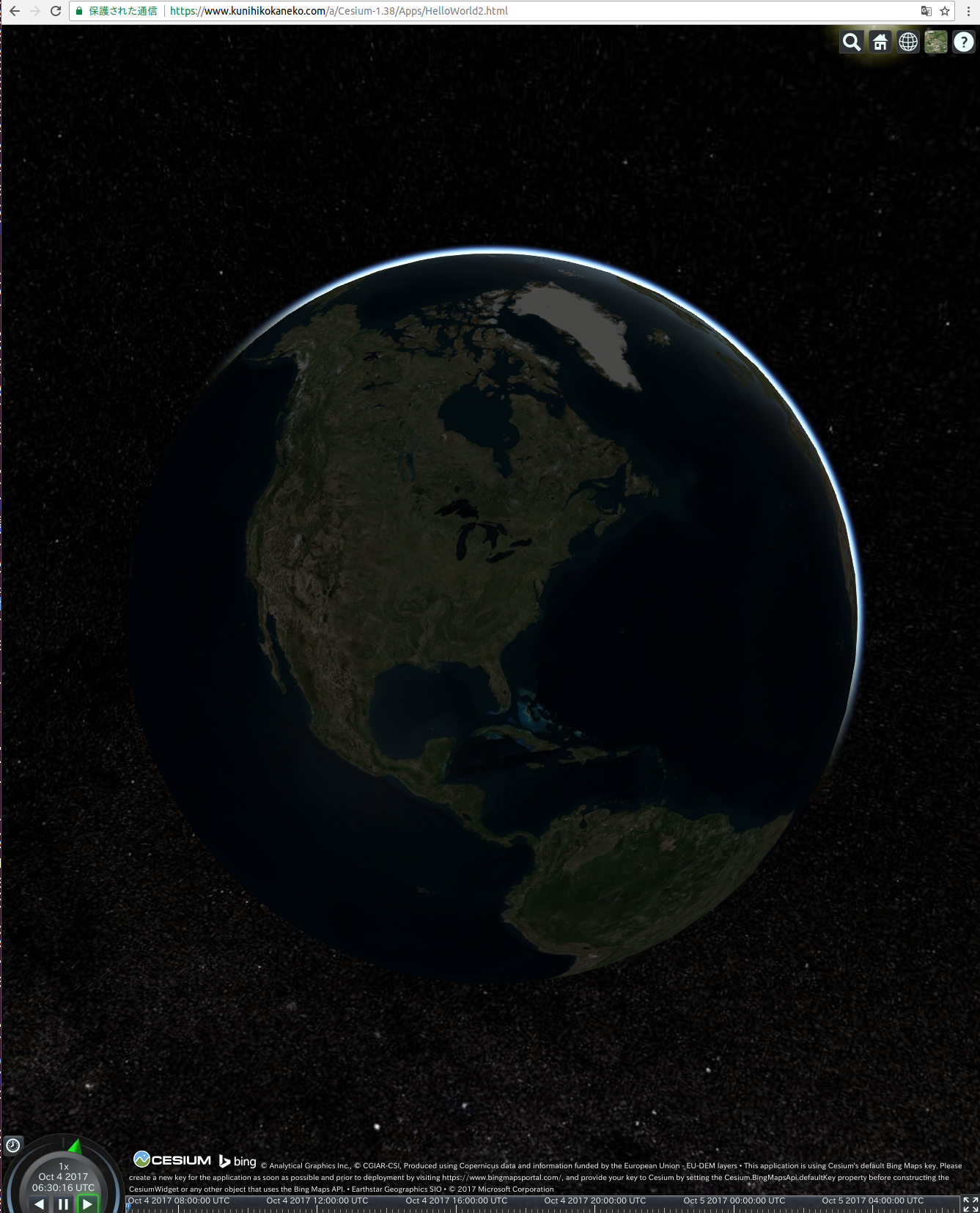

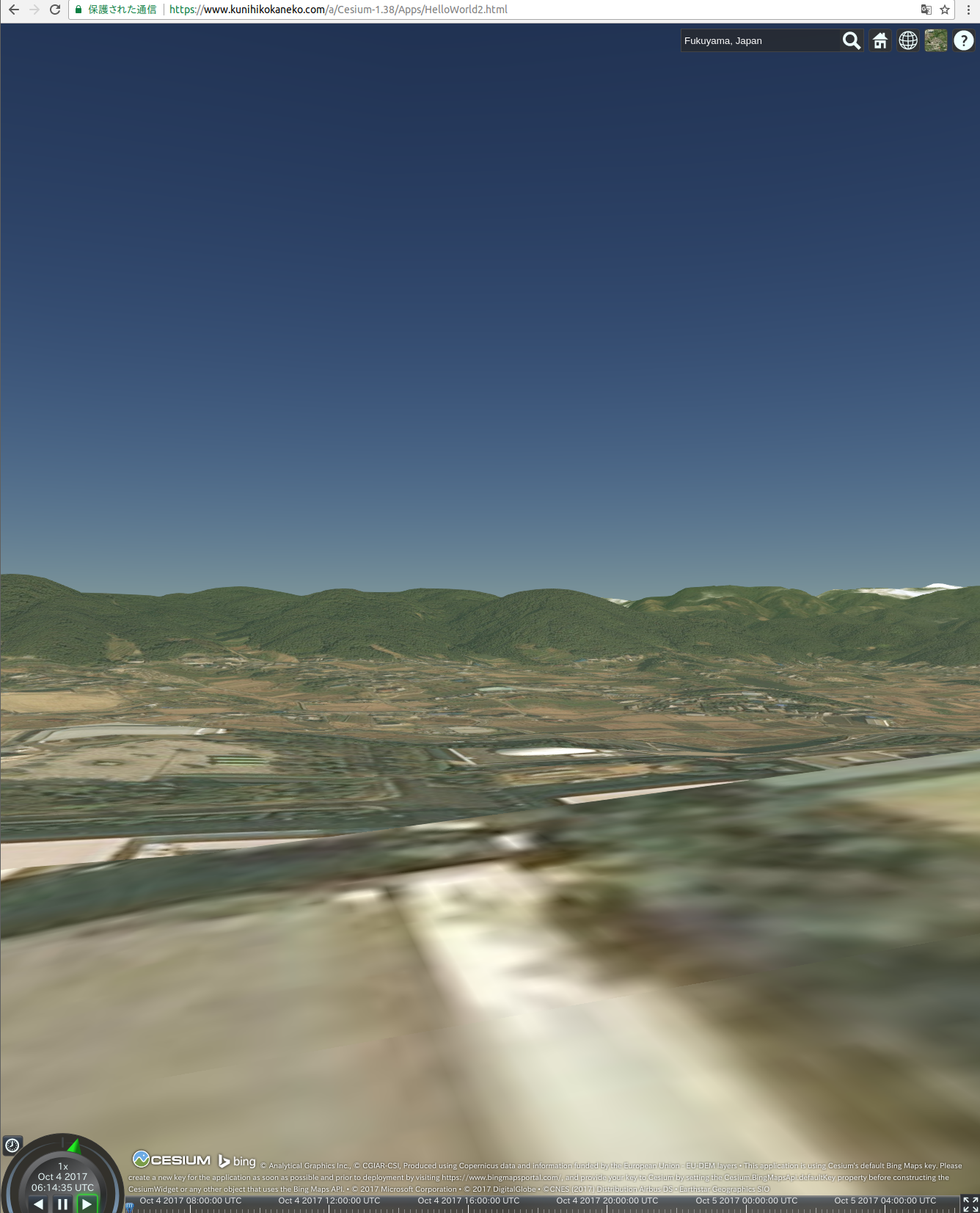

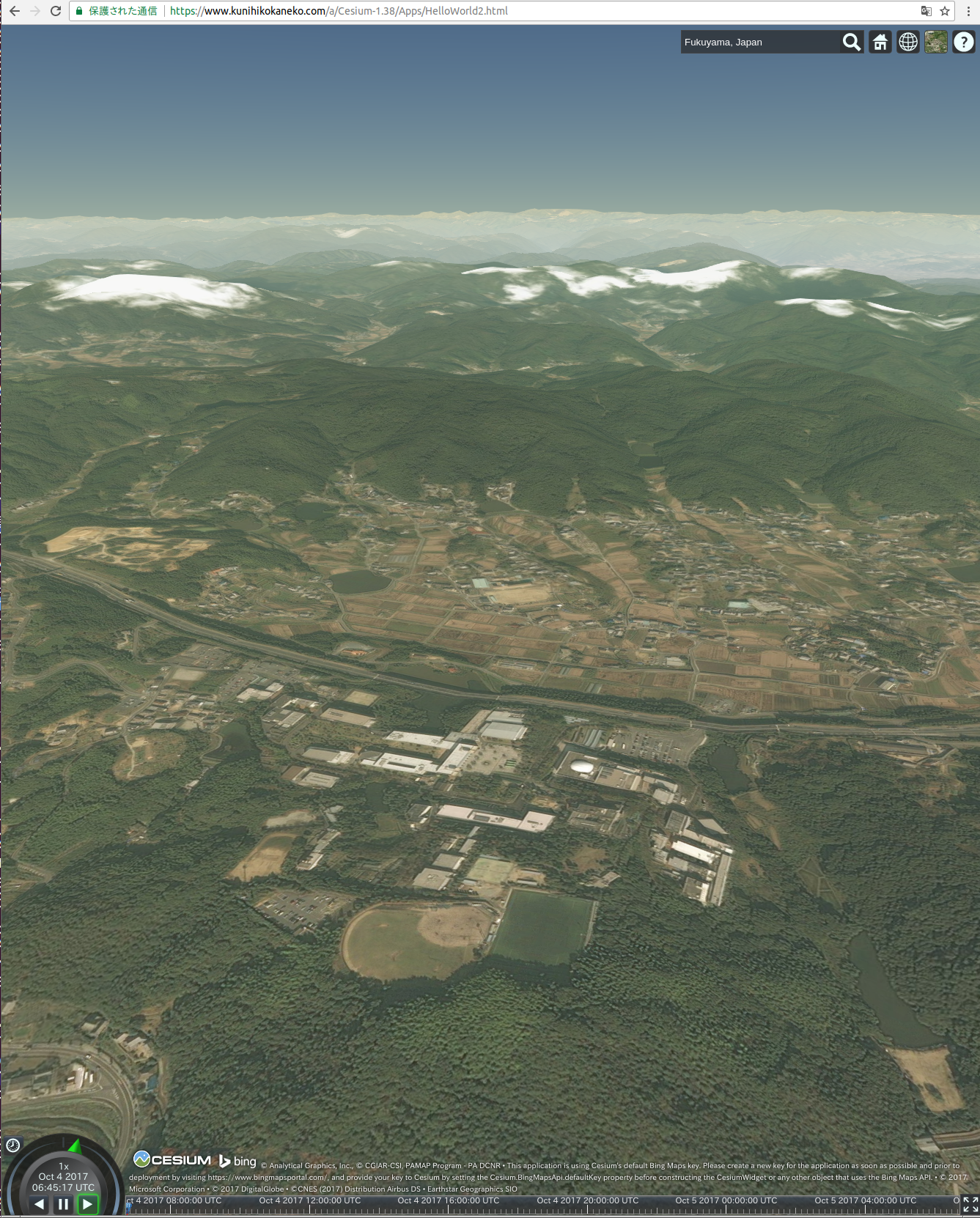

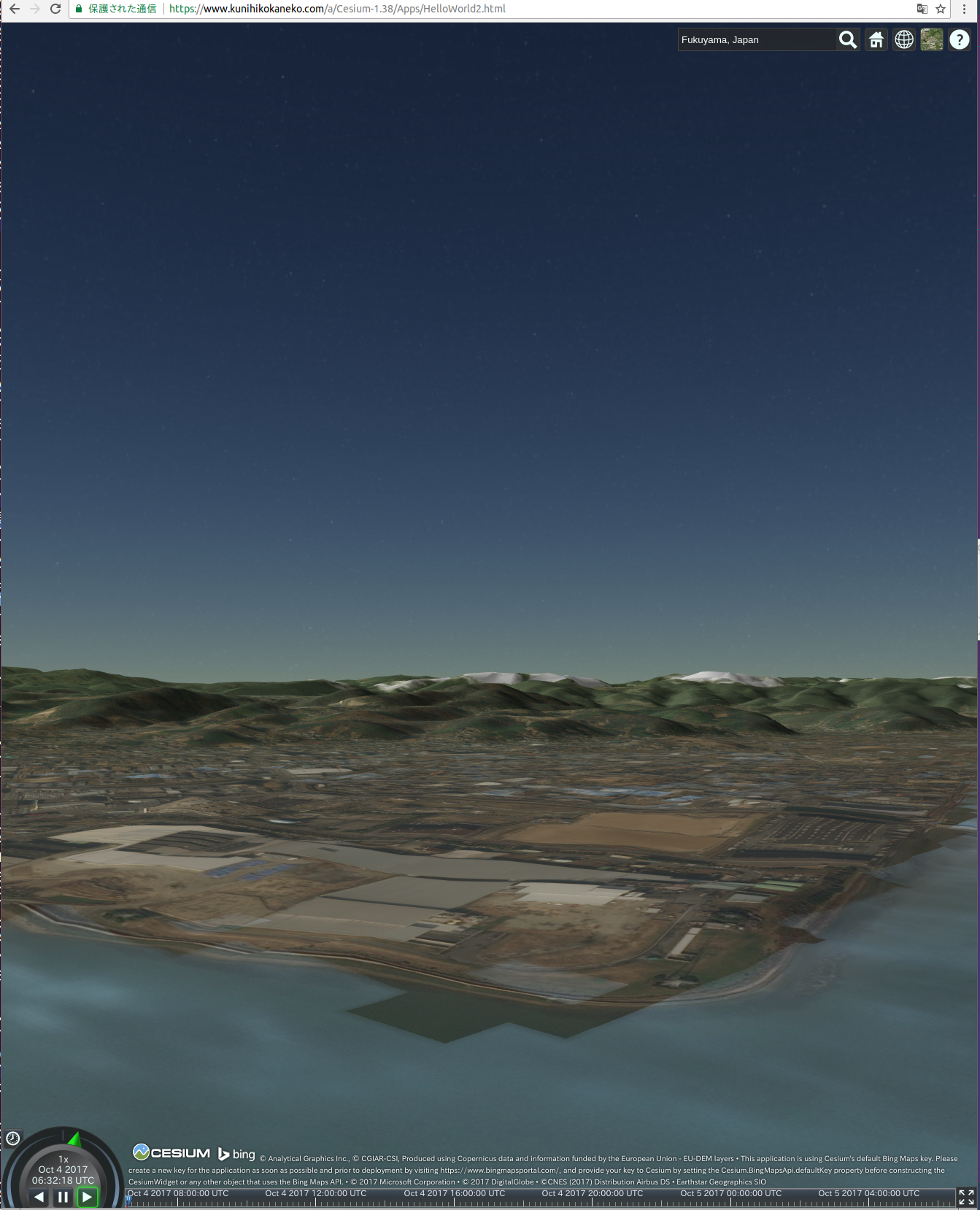

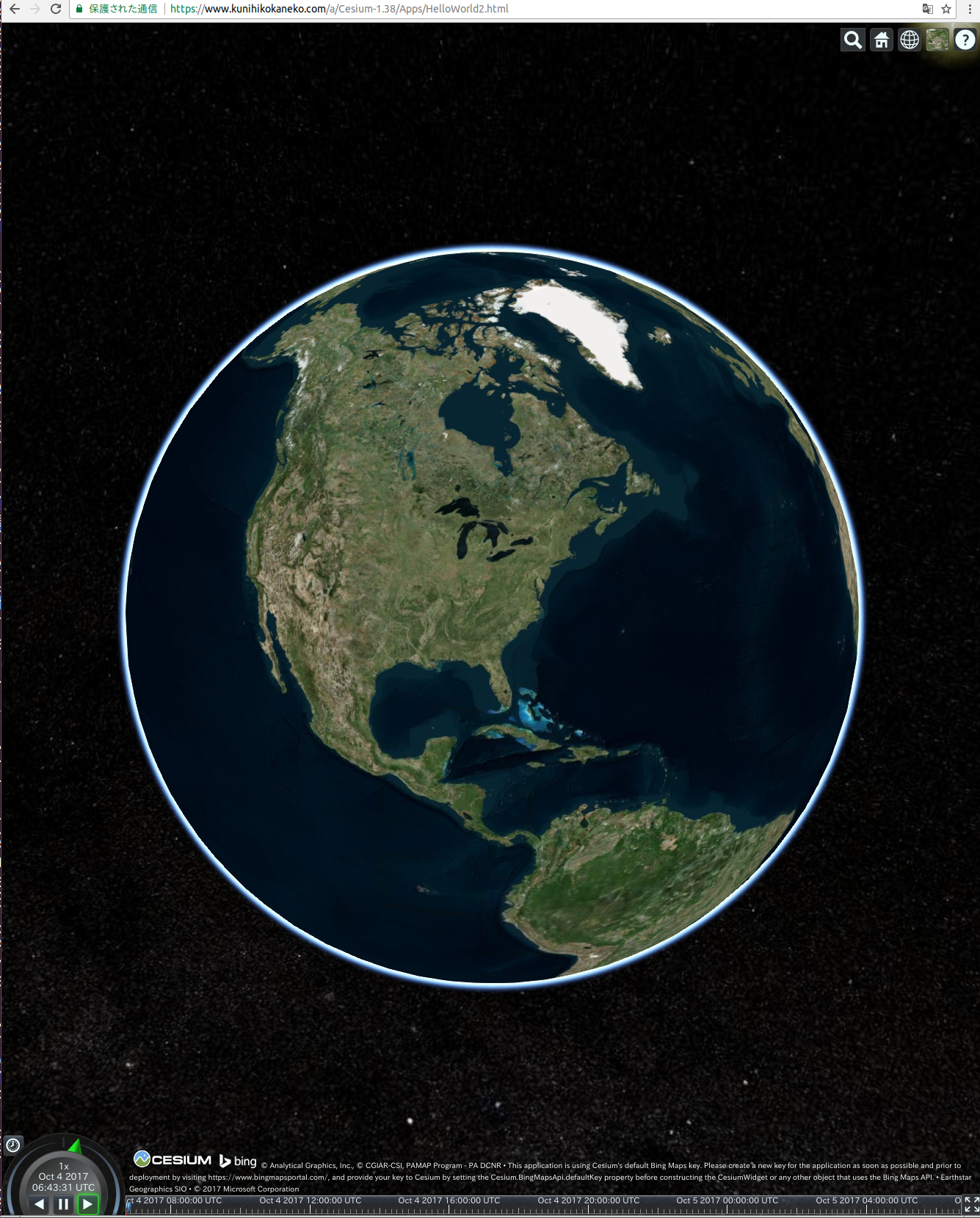

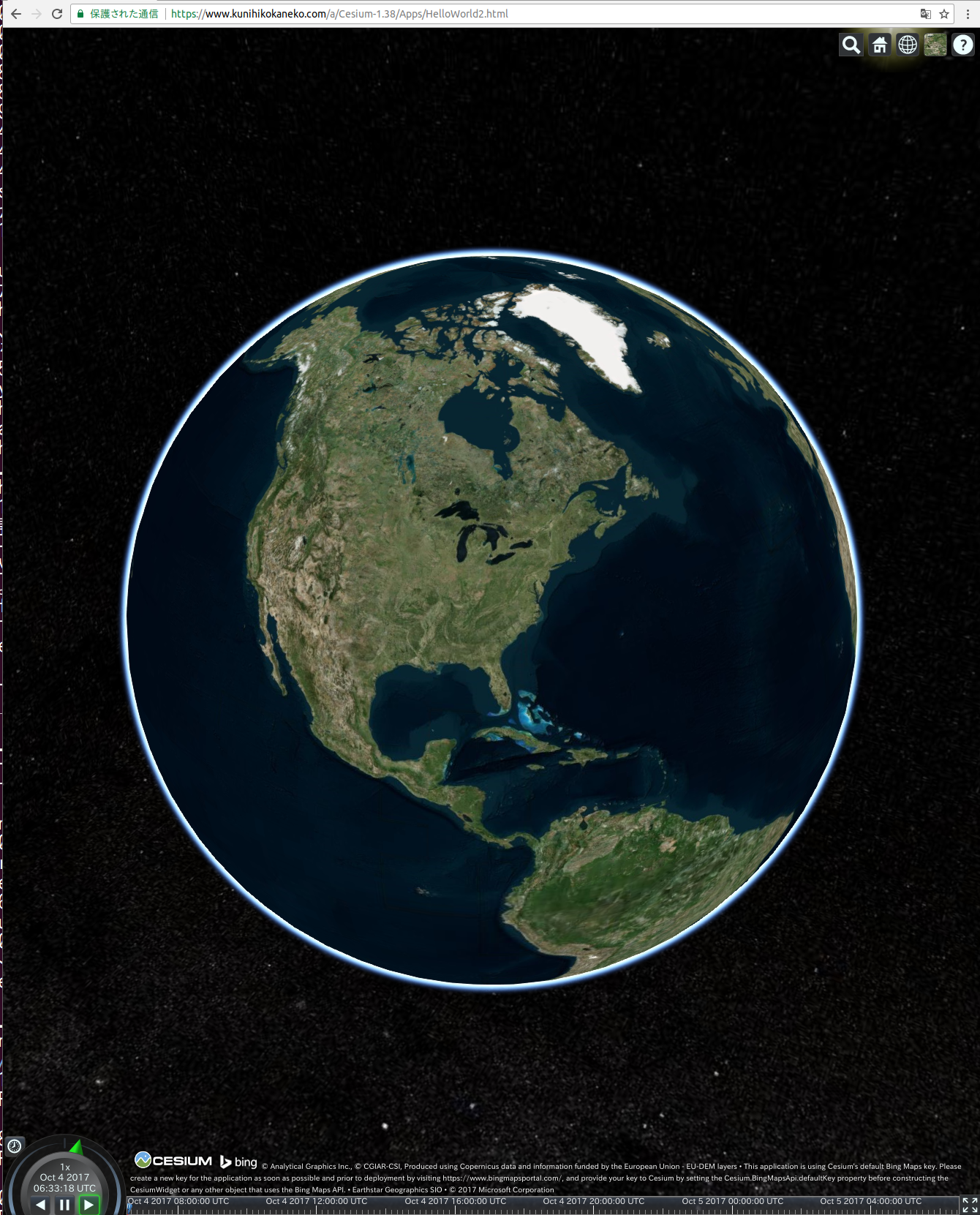

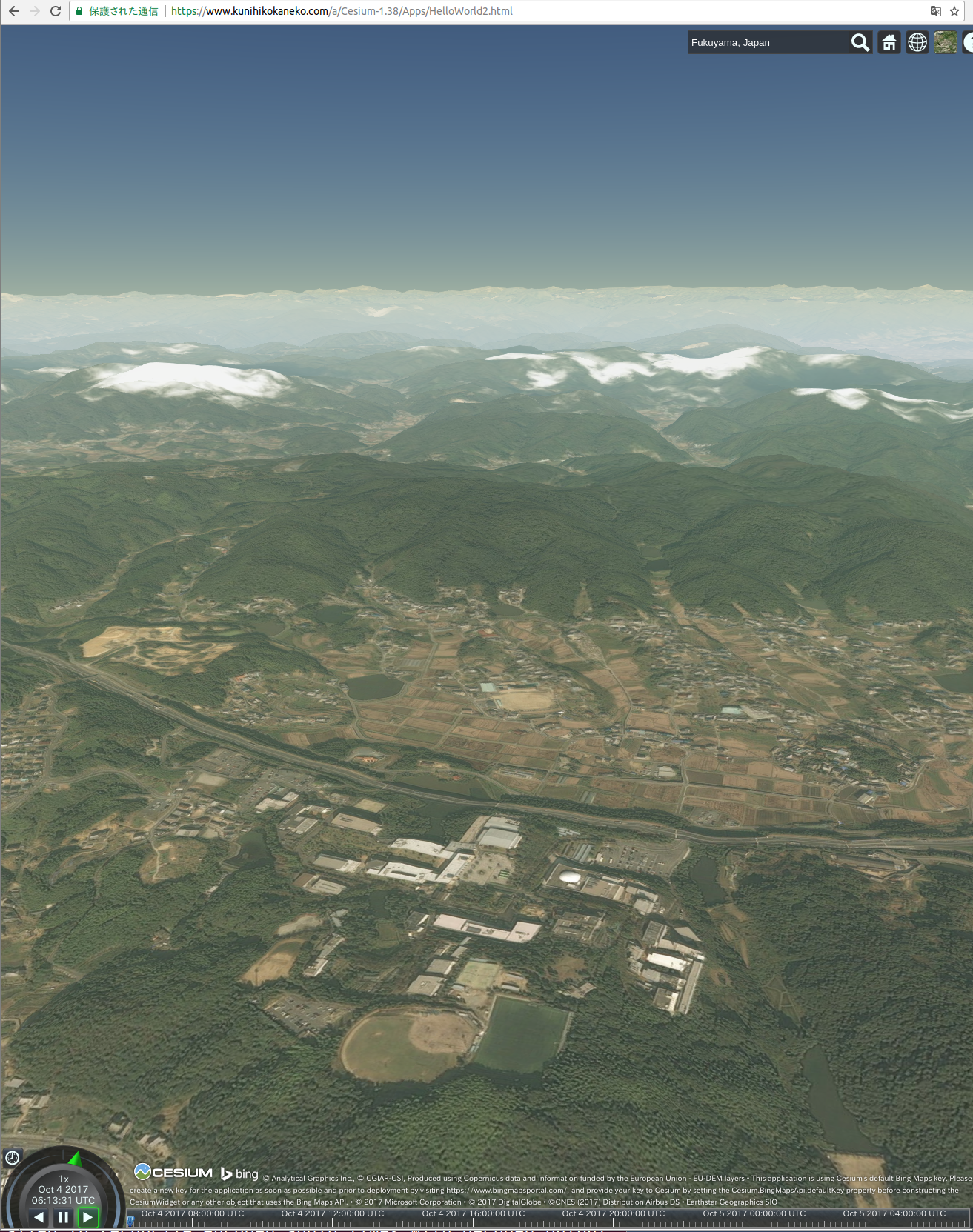

Apps/HelloWorld.html を Apps/HelloWorld2.html にコピーし、 Apps/HelloWorld2.html を次のように書き換える

<!DOCTYPE html>
<html lang="en">
<head>
  <!-- Use correct character set. -->
  <meta charset="utf-8">
  <!-- Tell IE to use the latest, best version. -->
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
  <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
  <title>Hello World!</title>
  <script src="../Build/Cesium/Cesium.js"></script>
  <style>
      @import url(../Build/Cesium/Widgets/widgets.css);
      html, body, #cesiumContainer {
          width: 100%; height: 100%; margin: 0; padding: 0; overflow: hidden;
      }
  </style>
</head>
<body>
  <div id="cesiumContainer"></div>
  <script>
    var viewer = new Cesium.Viewer('cesiumContainer');
    var terrainProvider = new Cesium.CesiumTerrainProvider({
        url : '//assets.agi.com/stk-terrain/world'
    });
    viewer.terrainProvider = terrainProvider;
  </script>
</body>
</html>

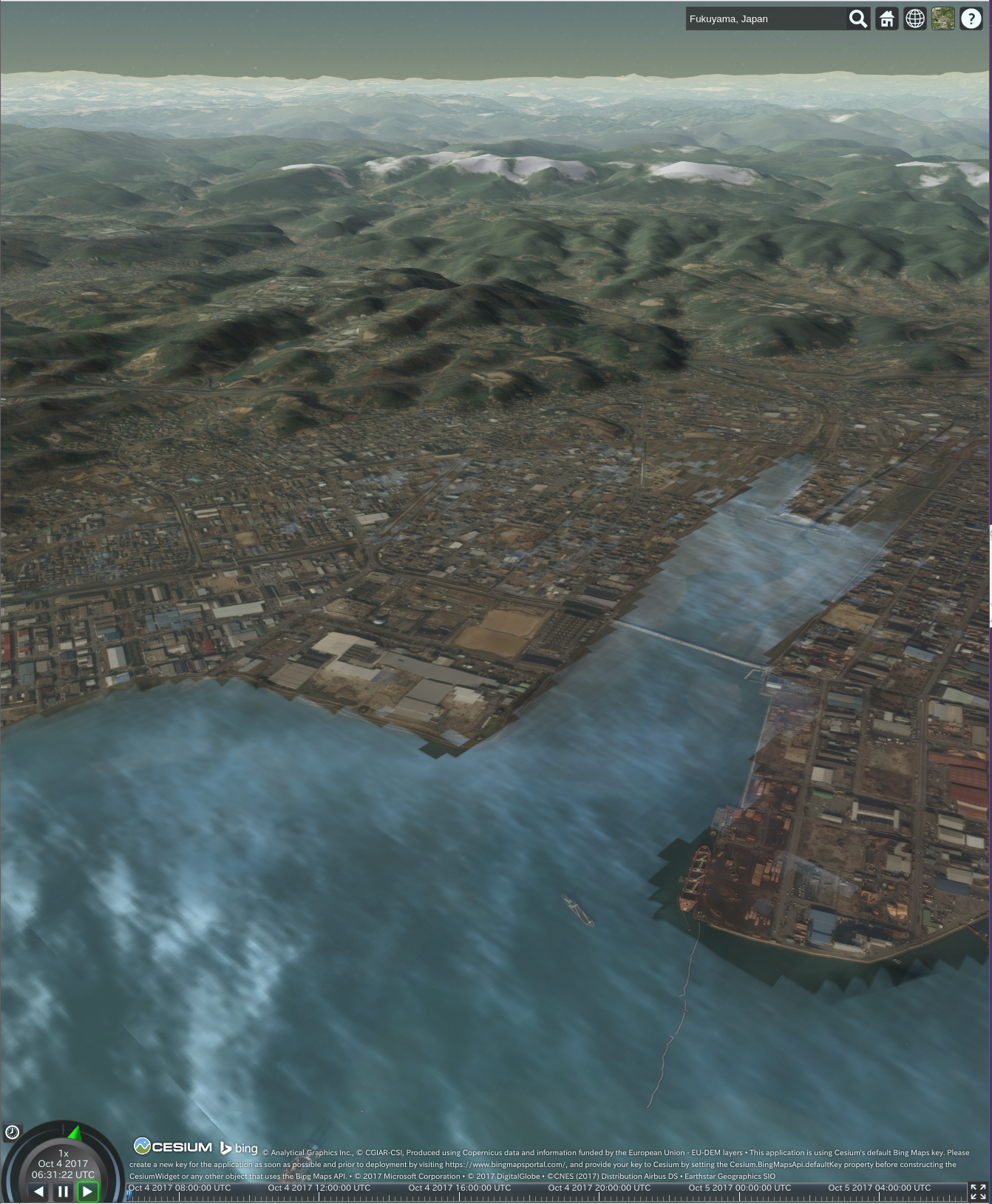

Apps/HelloWorld.html を Apps/HelloWorld3.html にコピーし、 Apps/HelloWorld3.html を次のように書き換える

<!DOCTYPE html>
<html lang="en">
<head>
  <!-- Use correct character set. -->
  <meta charset="utf-8">
  <!-- Tell IE to use the latest, best version. -->
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
  <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
  <title>Hello World!</title>
  <script src="../Build/Cesium/Cesium.js"></script>
  <style>
      @import url(../Build/Cesium/Widgets/widgets.css);
      html, body, #cesiumContainer {
          width: 100%; height: 100%; margin: 0; padding: 0; overflow: hidden;
      }
  </style>
</head>
<body>
  <div id="cesiumContainer"></div>
  <script>
    var viewer = new Cesium.Viewer('cesiumContainer');
    var terrainProvider = new Cesium.CesiumTerrainProvider({
        url : '//assets.agi.com/stk-terrain/v1/tilesets/PAMAP/tiles'
    });
    viewer.terrainProvider = terrainProvider;
  </script>
</body>
</html>

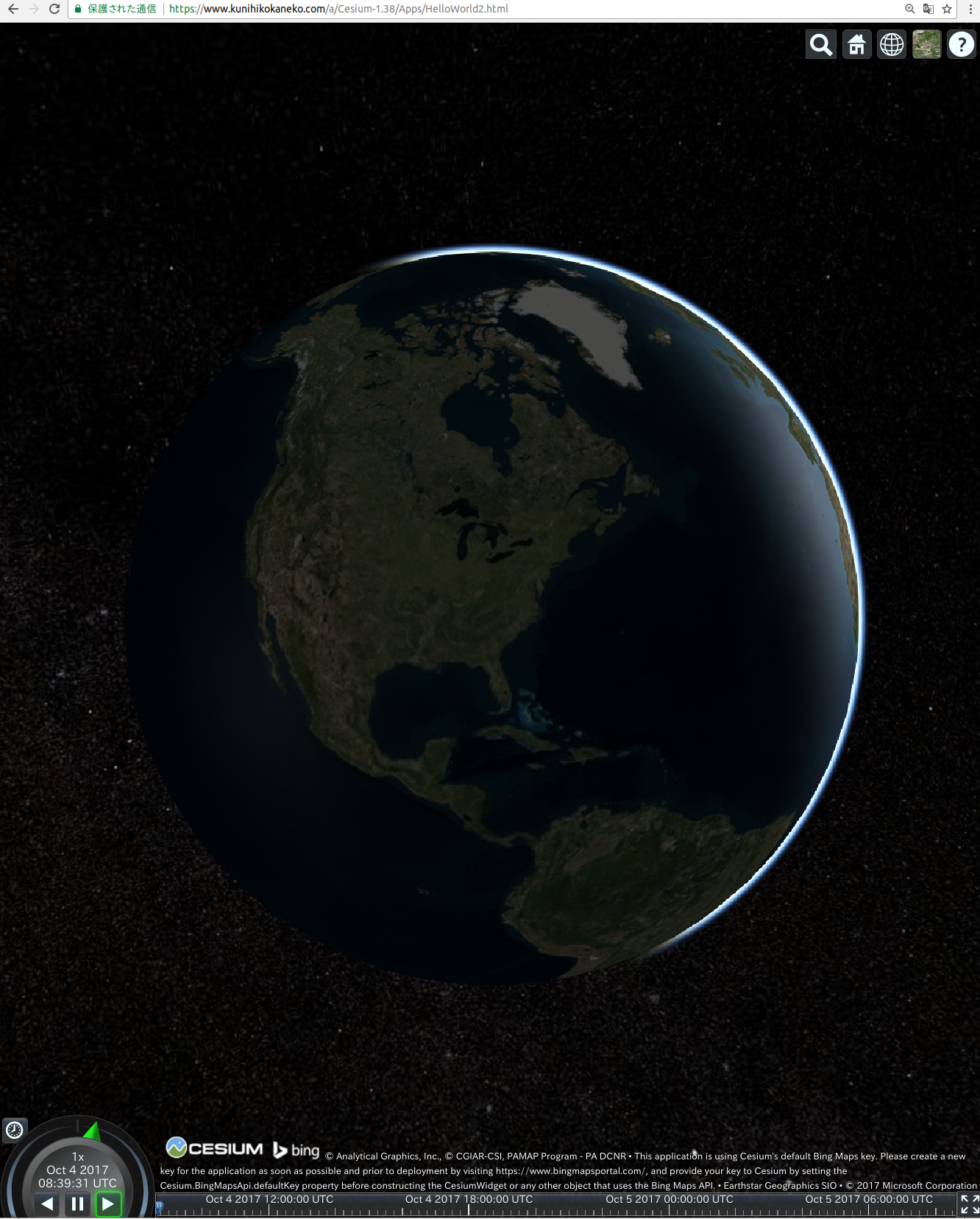

テラインで光と水の効果付き (Enabling Terrain Lighting and Water Effects)

Apps/HelloWorld.html を Apps/HelloWorld4.html にコピーし、 Apps/HelloWorld4.html を次のように書き換える

<!DOCTYPE html>
<html lang="en">
<head>
  <!-- Use correct character set. -->
  <meta charset="utf-8">
  <!-- Tell IE to use the latest, best version. -->
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
  <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
  <title>Hello World!</title>
  <script src="../Build/Cesium/Cesium.js"></script>
  <style>
      @import url(../Build/Cesium/Widgets/widgets.css);
      html, body, #cesiumContainer {
          width: 100%; height: 100%; margin: 0; padding: 0; overflow: hidden;
      }
  </style>
</head>
<body>
  <div id="cesiumContainer"></div>
  <script>
    var viewer = new Cesium.Viewer('cesiumContainer');
    var terrainProvider = new Cesium.CesiumTerrainProvider({
        url : '//assets.agi.com/stk-terrain/world',
        requestVertexNormals: true,
        requestWaterMask: true
    });
    viewer.terrainProvider = terrainProvider;
    viewer.scene.globe.enableLighting = true;
  </script>
</body>
</html>

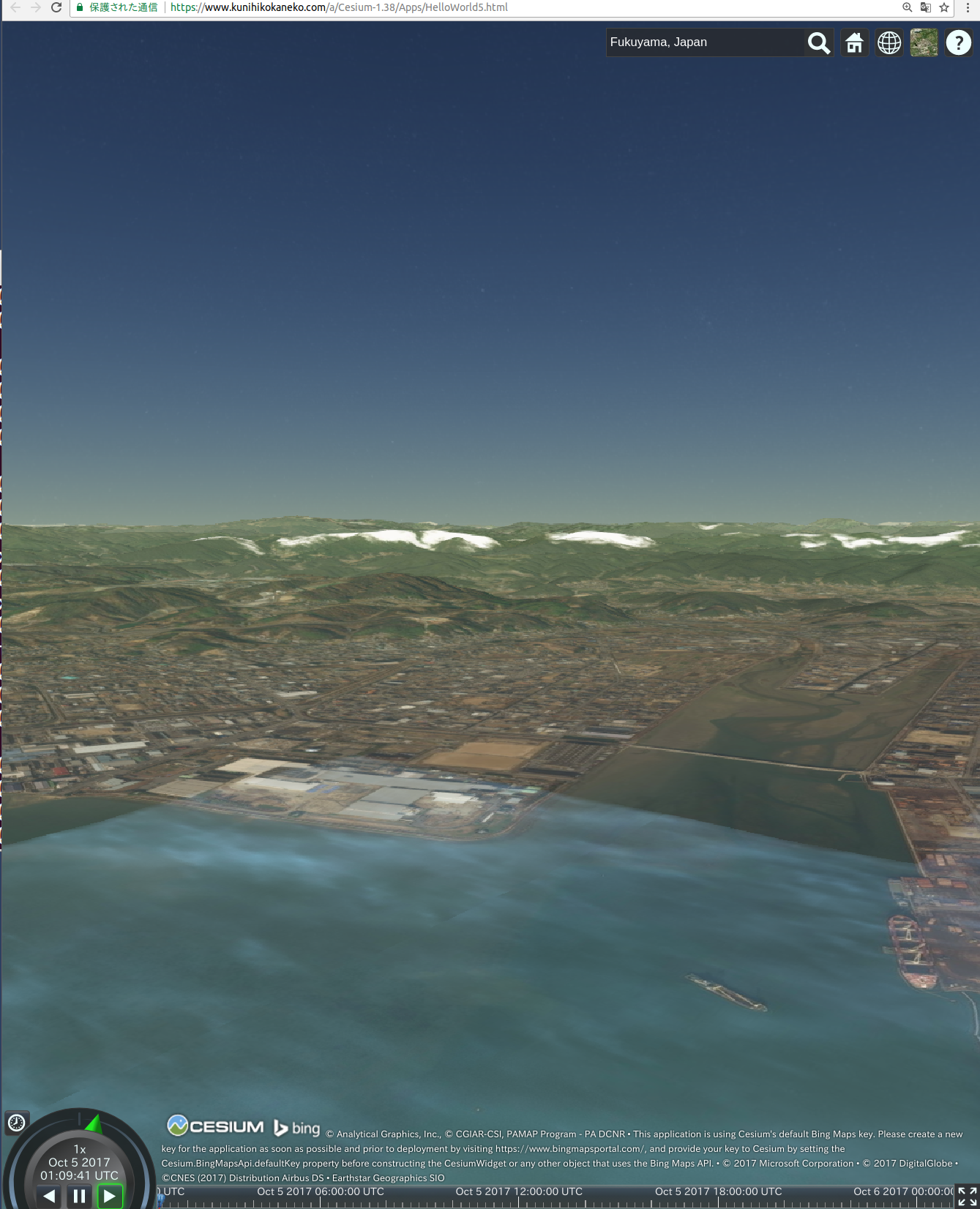

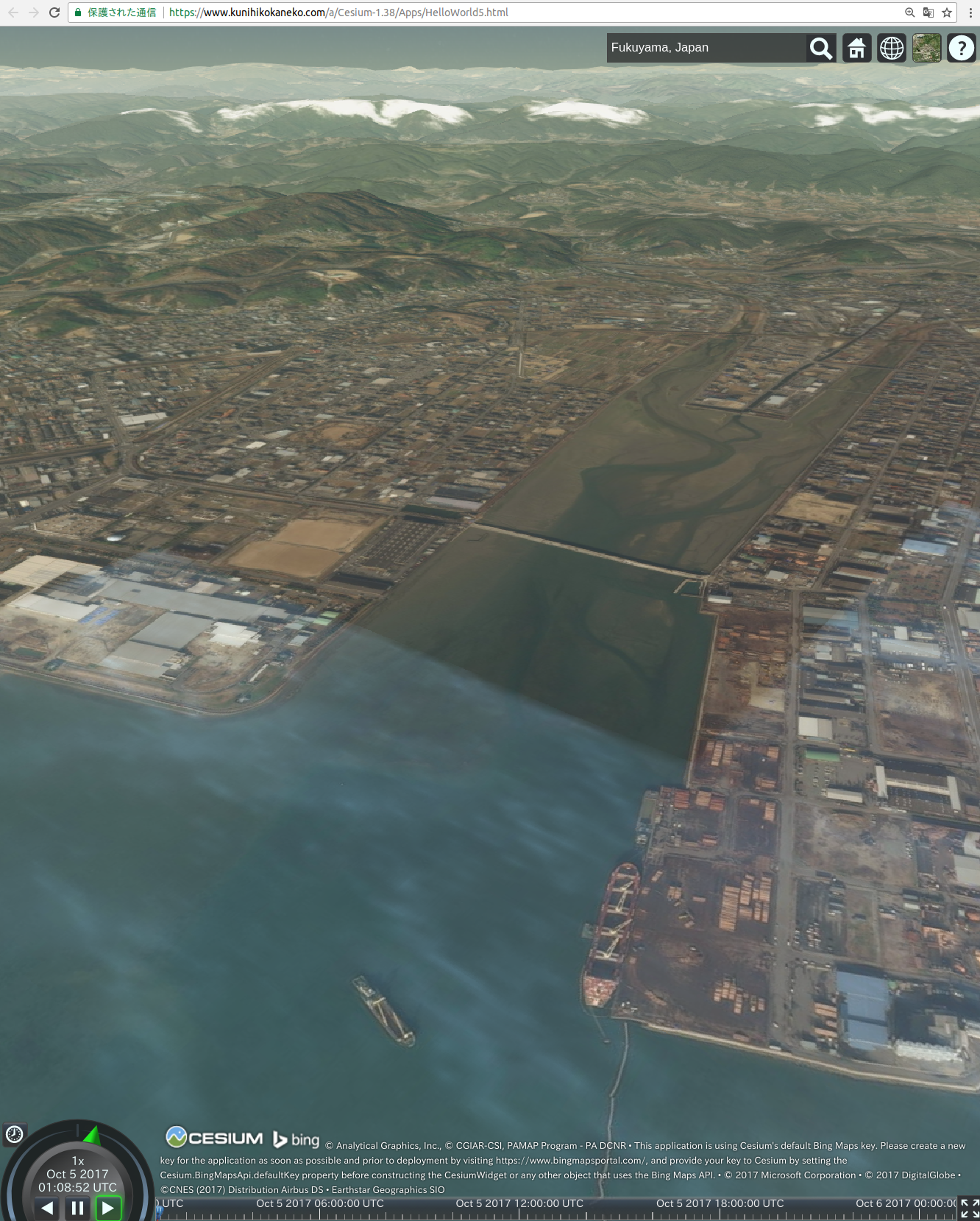

Apps/HelloWorld.html を Apps/HelloWorld5.html にコピーし、 Apps/HelloWorld5.html を次のように書き換える

<!DOCTYPE html>
<html lang="en">
<head>
  <!-- Use correct character set. -->
  <meta charset="utf-8">
  <!-- Tell IE to use the latest, best version. -->
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <!-- Make the application on mobile take up the full browser screen and disable user scaling. -->
  <meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no">
  <title>Hello World!</title>
  <script src="../Build/Cesium/Cesium.js"></script>
  <style>
      @import url(../Build/Cesium/Widgets/widgets.css);
      html, body, #cesiumContainer {
          width: 100%; height: 100%; margin: 0; padding: 0; overflow: hidden;
      }
  </style>
</head>
<body>
  <div id="cesiumContainer"></div>
  <script>
    var viewer = new Cesium.Viewer('cesiumContainer');
    var terrainProvider = new Cesium.CesiumTerrainProvider({
        url : '//assets.agi.com/stk-terrain/v1/tilesets/PAMAP/tiles',
        requestVertexNormals: true,
        requestWaterMask: true
    });
    viewer.terrainProvider = terrainProvider;
    viewer.scene.globe.enableLighting = true;
  </script>
</body>
</html>
