Dlibは,機械学習のアルゴリズムやトールの機能を持つソフトウエア.
このページでは,Dlib の次の機能を使う
次の画像について顔検出を行うとする
顔検出が行われ,顔を囲むようなバウンディングボックス (bounding box) が表示される.

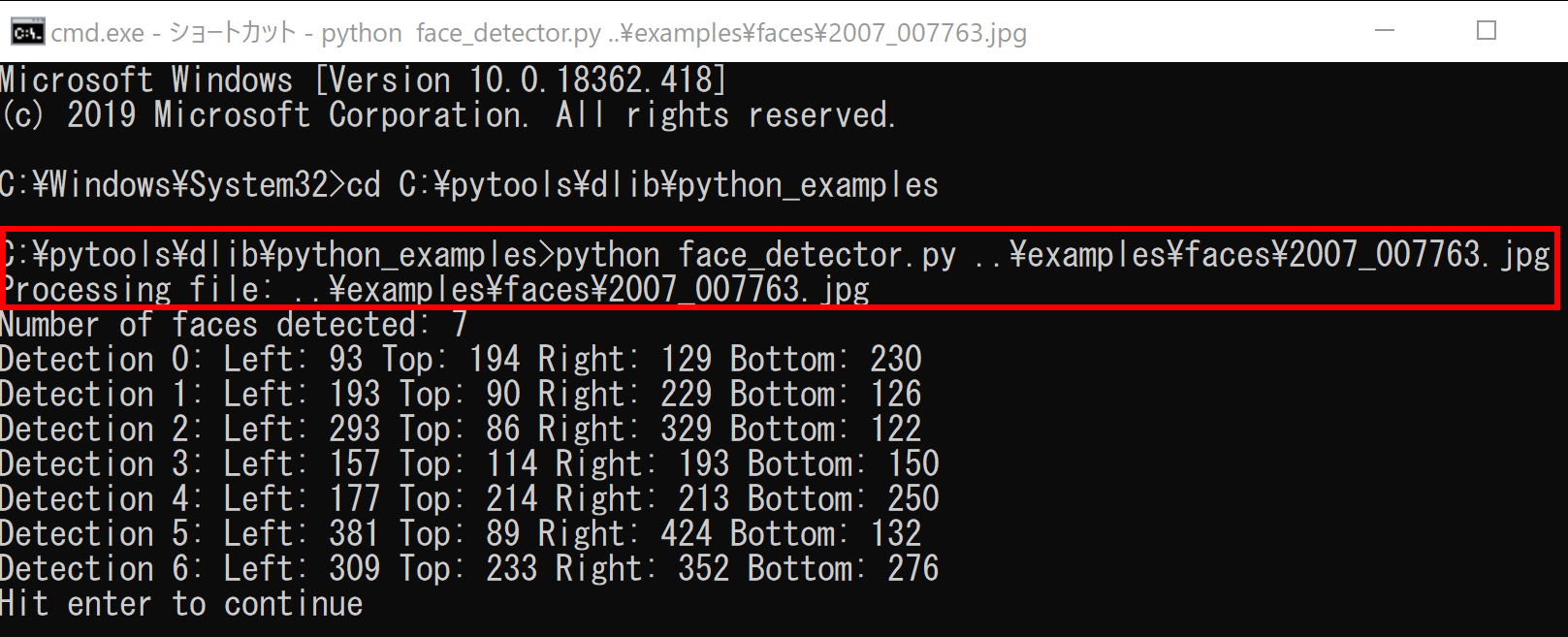

バウンディングボックスの座標値が数値データとして得られる
顔のランドマーク検知が行われ,顔を囲むようなバウンディングボックス (bounding box) と,顔のランドマークが表示される.
利用条件などは利用者において確認してください
サイト内の関連ページ
先人に感謝
dlib の Web ページ: http://dlib.net/
sudo apt -y install python3-dev python3-pip python3-numpy
Windows では「python」を使う,Ubuntu では「python3」を使う.
※ 「pip install ...」は,Python パッケージをインストールするための操作.
python -m pip install -U python -m pip install -U numpy scikit-image scikit-learn
sudo apt update sudo apt -y install python3-numpy python3-skimage python3-sklearn
※ ここには,Windows でのインストール手順を示す.Ubuntuでも同様の手順になる.
Dlib は C:\pytools\dlib にインストールされているとする
mkdir c:\pytools cd c:\pytools rmdir /s /q imutils
cd c:\pytools git clone https://github.com/jrosebr1/imutils cd imutils python setup.py build python setup.py install
Windows のコマンドプロンプトで、次のコマンドを実行
※ Python プログラムを動かすために, Windows では,「python」コマンドを使う. Ubuntu では「python3」コマンドを使う.
開発環境や Python コンソール(Jupyter Qt Console,spyder,PyCharm,PyScripter など)も便利である.
py -c "import imutils; print( imutils.__version__ )"
Dlib のための「学習済みのモデルデータ」をダウンロードする
※ Windows での展開(解凍)のためのソフトには,「7-Zip」などがある.
※ C:\pytools\dlib が無いときは作る
「C:\pytools\dlib」は,Dlib のディレクトリ
cd C:\pytools\dlib\python_examples
※ 「C:\pytools\dlib」は,Dlib をインストールしたディレクトリに読み替えること。
※ まだ Dlib のインストールを行っていないときは, 別のWebページで説明している.手順によりインストールすること.(このWebページにある「前準備」も行うこと)
顔検出が行われ,顔を囲むようなバウンディングボックス (bounding box) が表示される. そして,バウンディングボックスの座標値が数値データとして得られていることが,画面表示で確認できる.
py face_detector.py ..\examples\faces\2007_007763.jpg
顔ごとに,最大で 68 のランドマーク (68 landmarks) が得られる.
py face_landmark_detection.py shape_predictor_68_face_landmarks.dat ..\examples\faces\
GitHub の ezgiakcora/Facial-Expression-Keras で公開されているプログラムを試してみる. これは Dlibを使う表情認識のプログラムである
mkdir c:\pytools cd c:\pytools rmdir /s /q Facial-Expression-Keras
cd c:\pytools git clone https://github.com/ezgiakcora/Facial-Expression-Keras cd Facial-Expression-Keras
cd c:\pytools\Facial-Expression-Keras copy C:\pytools\dlib\python_examples\shape_predictor_68_face_landmarks.dat .
USB接続できるビデオカメラを準備し,パソコンに接続しておく.
cd c:\pytools\Facial-Expression-Keras py demo.py
※ 途中で止めたいとき,右上の「x」をクリックしない.画面の中をクリックしてから,「q」のキーを押して閉じる
import numpy as np import cv2 from tensorflow.keras.preprocessing import image import dlib from imutils import face_utils import imutils from sklearn import preprocessing import math from keras.models import model_from_json #----------------------------- #opencv initialization face_cascade = cv2.CascadeClassifier('C:/pytools/Facial-Expression-Keras/haarcascade_frontalface_default.xml') cap = cv2.VideoCapture(0) #----------------------------- #face expression recognizer initialization # Using pretrained model model = model_from_json(open("C:/pytools/Facial-Expression-Keras/model/model.json", "r").read()) model.load_weights('C:/pytools/Facial-Expression-Keras/model/model.h5') #load weights #----------------------------- emotions = ( 'Angry' , 'Disgust' , 'Fear' , 'Happy' , 'Neutral' , 'Sad' , 'Surprise') # initialize dlib's face detector and create a predictor detector = dlib.get_frontal_face_detector() predictor = dlib.shape_predictor("C:/pytools/Facial-Expression-Keras/shape_predictor_68_face_landmarks.dat") def detect_parts(image): distances = [] # resize the image, and convert it to grayscale image = imutils.resize(image, width=200, height=200) gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) # detect faces in the grayscale image rects = detector(gray, 1) # loop over the face detections for (i, rect) in enumerate(rects): shape = predictor(gray, rect) shape = face_utils.shape_to_np(shape) distances = euclidean_all(shape) # visualize all facial landmarks with a transparent overlay #output = face_utils.visualize_facial_landmarks(image, shape) #cv2.imshow("Image", output) #cv2.waitKey(0) return distances def euclidean(a, b): dist = math.sqrt(math.pow((b[0] - a[0]), 2) + math.pow((b[1] - a[1]), 2)) return dist # calculates distances between all 68 elements def euclidean_all(a): distances = "" for i in range(0, len(a)): for j in range(0, len(a)): dist = euclidean(a[i], a[j]) dist = "%.2f" % dist; distances = distances + " " + str(dist) return distances def box_label(bgr, x1, y1, x2, y2, label): cv2.rectangle(bgr, (x1, y1), (x2, y2), (255, 0, 0), 1, 1) cv2.rectangle(bgr, (int(x1), int(y1-25)), (x2, y1), (255,255,255), -1) cv2.putText(bgr, label, (x1, int(y1-5)), cv2.FONT_HERSHEY_COMPLEX, 0.7, (0,0,0), 1) while(True): ret, img = cap.read() gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) faces = face_cascade.detectMultiScale(gray, 1.3, 5) for (x,y,w,h) in faces: detected_face = img[int(y):int(y+h), int(x):int(x+w)] #crop detected face distances = detect_parts(detected_face) if(len(distances)!=0): val = distances.split(" ")[1:] val = np.array(val) val = val.astype(np.float) val = np.expand_dims(val, axis = 1) minmax = preprocessing.MinMaxScaler() val = minmax.fit_transform(val) val = val.reshape(1,4624) predictions = model.predict(val) #store probabilities of 6 expressions #find max indexed array ( 'Angry' , 'Disgust' , 'Fear' , 'Happy' , 'Neutral' , 'Sad' , 'Surprise') print ("Angry: %", predictions[0][0]/1.0 * 100) print ("Disgust: %", predictions[0][1]/1.0 * 100) print ("Fear: %", predictions[0][2]/1.0 * 100) print ("Happy: %", predictions[0][3]/1.0 * 100) print ("Neutral: %", predictions[0][4]/1.0 * 100) print ("Sad: %", predictions[0][5]/1.0 * 100) print ("Surprised: %", predictions[0][6]/1.0 * 100) print ("----------------------" ) max_index = np.argmax(predictions[0]) emotion = emotions[max_index] #write emotion text above rectangle box_label(img, x, y, x+w, y+h, emotion+":"+'{:2.2f}'.format(np.max(predictions[0])/1.0 * 100)) cv2.imshow('img',img) if cv2.waitKey(1) & 0xFF == ord('q'): #press q to quit break #kill open cv things cap.release() cv2.destroyAllWindows()
※ 途中で止めたいとき,右上の「x」をクリックしない.画面の中をクリックしてから,「q」のキーを押して閉じる
