JavaServer Faces タグ

JSF (JavaServer Faces) タグ及び tomahawk 拡張タグに関する種々の機能を紹介します.

注意事項



準備事項

前準備

JDK (Java Development Kit) のインストール

Eclipse のインストール

その他

事前の準備

「JavaServer Faces サンプルプログラム」の Web ページの記述に従って,下記の作業を終えていること.

  1. Eclipse での動的 Web プロジェクトの作成
  2. Apache MyFaces バージョン 2.0 に関するファイル群 jsf-blank のインポート

JSP プログラム作成の方針

JSF タグにおけるフォーム部品

1行テキスト

[image]

図. 動作画面の例(1行テキスト)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel for="text1" value="ユーザ名は?"/>
        <h:inputText id="text1" value="#{regform.ユーザ名}"/>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(1行テキスト)

テキストエリア

[image]

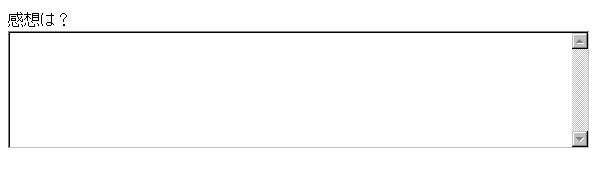

図. 動作画面の例(テキストエリア)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel for="textarea1" value="感想は?"/>
        <br/>
        <h:inputTextarea id="textarea1" cols="80" rows="8" value="#{regform.感想}"/>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(テキストエリア)

カレンダー

[image]

図. 動作画面の例(カレンダー)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel value="発生日は?"/>
        <br/>
        <t:inputCalendar monthYearRowClass="yearMonthHeader"
                    weekRowClass="weekHeader" renderAsPopup="false"
                    popupDateFormat="yyyy/MM/dd" popupTodayString="本日は"
                    popupWeekString="週目"
                    value="#{regform.発生日}" />
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(カレンダー)

ブーレアン・チェックボックス

[image]

図. 動作画面の例(ブーレアン・チェックボックス)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel for="checkbox1" value="処理済みか?"/>
        <h:selectBooleanCheckbox id="checkbox1" value="#{regform.処理済みか}" />
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(ブーレアン・チェックボックス)

チェックボックス

[image]

図. 動作画面の例(チェックボックス)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>

</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel value="種類は(複数選択可)?" />

        <h:selectManyCheckbox id="checkbox2" value="#{regform.種類}" >
        <f:selectItem itemValue="楽しい出来事" itemLabel="楽しい出来事" />
        <f:selectItem itemValue="悲しい出来事" itemLabel="悲しい出来事" />
        <f:selectItem itemValue="重要" itemLabel="重要" />
        <f:selectItem itemValue="影響大" itemLabel="影響大" />
        </h:selectManyCheckbox>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(チェックボックス)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>

</head>

<body>
<f:view>
    <h:form id="form1">
    <h:panelGrid columns="2">
    <h:outputLabel value="種類は(複数選択可)?" />

        <!-- layout="spread" にしているので,チェックボックスを作るが表示はされない(2カラム表示を可能にするための工夫) -->
        <t:selectManyCheckbox id="checkbox2" value="#{regform.種類}" styleClass="selectManyCheckbox">
        <f:selectItems value="#{items.種類}" />
        </t:selectManyCheckbox>
    </h:panelGrid>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(チェックボックス), selectItems を使う例

チェックボックス・2段組み

[image]

図. 動作画面の例(チェックボックス・2段組み)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>

    <h:form id="form1">
    <h:panelGrid columns="2">
    <h:outputLabel value="種類は(複数選択可)?" />

        <!-- layout="spread" にしているので,チェックボックスを作るが表示はされない(2カラム表示を可能にするための工夫) -->
        <t:selectManyCheckbox id="checkbox2" value="#{regform.種類}" layout="spread" styleClass="selectManyCheckbox">
        <f:selectItem itemValue="楽しい出来事" itemLabel="楽しい出来事" />
        <f:selectItem itemValue="悲しい出来事" itemLabel="悲しい出来事" />
        <f:selectItem itemValue="重要" itemLabel="重要" />
        <f:selectItem itemValue="影響大" itemLabel="影響大" />
        </t:selectManyCheckbox>

        <!-- 作ったチェックボックスの表示.for="???" 部分は一致させること.index は 0 から始まる -->
        <t:checkbox for="checkbox2" index="0" />
        <t:checkbox for="checkbox2" index="1" />
        <t:checkbox for="checkbox2" index="2" />
        <t:checkbox for="checkbox2" index="3" />
    </h:panelGrid>
    </h:form>

</f:view>
</body>
</html>
図. index.jsp の例(チェックボックス・2段組み), selectItem を使う例

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>

</head>

<body>
<f:view>
    <h:form id="form1">
    <h:panelGrid columns="2">
    <h:outputLabel value="種類は(複数選択可)?" />

        <!-- layout="spread" にしているので,チェックボックスを作るが表示はされない(2カラム表示を可能にするための工夫) -->
        <t:selectManyCheckbox id="checkbox2" value="#{regform.種類}" layout="spread" styleClass="selectManyCheckbox">
        <f:selectItems value="#{items.種類}" />
        </t:selectManyCheckbox>

        <!-- 作ったチェックボックスの表示.for="???" 部分は一致させること.index は 0 から始まる -->
        <t:checkbox for="checkbox2" index="0" />
        <t:checkbox for="checkbox2" index="1" />
        <t:checkbox for="checkbox2" index="2" />
        <t:checkbox for="checkbox2" index="3" />
    </h:panelGrid>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(チェックボックス・2段組み), selectItems を使う例

セレクトメニュー

[image]

図. 動作画面の例(セレクトメニュー)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel for="select1" value="レベルは?" />
        <h:selectOneMenu id="select1" value="#{regform.レベル}" >
        <f:selectItem itemValue="1" itemLabel="1" />
        <f:selectItem itemValue="2" itemLabel="2" />
        <f:selectItem itemValue="3" itemLabel="3" />
        <f:selectItem itemValue="4" itemLabel="4" />
        </h:selectOneMenu>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(セレクトメニュー)

ラジオボタン

[image]

図. 動作画面の例(ラジオボタン)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel value="場所は?" />
        <h:selectOneRadio id="radio1" value="#{regform.場所}" >
        <f:selectItem itemValue="公園" itemLabel="公園" />
        <f:selectItem itemValue="駅" itemLabel="駅" />
        <f:selectItem itemValue="道路" itemLabel="道路" />
        <f:selectItem itemValue="その他" itemLabel="その他" />
        </h:selectOneRadio>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(ラジオボタン)

ラジオボタン・2段組み

tomahawk の機能を使い、ラジオボタンの2段組みを簡単に行えます。

[image]

図. 動作画面の例(ラジオボタン・2段組み)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>

    <h:form id="form1">
    <h:panelGrid columns="2">
    <h:outputLabel value="場所は?" />

        <!-- layout="spread" にしているので,ラジオボタンを作るが表示はされない(2カラム表示を可能にするための工夫) -->
        <t:selectOneRadio id="radio1" value="#{regform.場所}" layout="spread" styleClass="selectOneRadio">
            <f:selectItem itemValue="公園" itemLabel="公園" />
            <f:selectItem itemValue="駅" itemLabel="駅" />
            <f:selectItem itemValue="道路" itemLabel="道路" />
            <f:selectItem itemValue="その他" itemLabel="その他" />
        </t:selectOneRadio>

        <!-- 作ったラジオボタンの表示.for="???" 部分は一致させること.index は 0 から始まる -->
        <t:radio for="radio1" index="0" />
        <t:radio for="radio1" index="1" />
        <t:radio for="radio1" index="2" />
        <t:radio for="radio1" index="3" />
    </h:panelGrid>
    </h:form>

</f:view>
</body>
</html>
図. index.jsp の例(ラジオボタン・2段組み)

コマンドボタン

コマンドボタンは、HTML の input type="submit" のこと。

[image]

図. 動作画面の例(コマンドボタン)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h:form id="form1">
        <h:outputLabel for="button1" value="登録ボタンを押してください → "/>
        <h:commandButton id="button1" value="登録ボタン" action="#{action.doRegistration}" />
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(コマンドボタン)

マネージド・ビーン (Managed Bean) の属性値の表示など

HTML タグ

H1, UL, LI タグなどはそのまま使える。

[image]

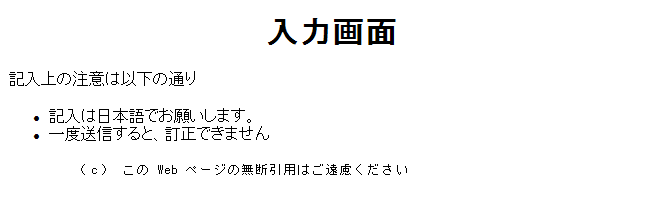

図. 動作画面の例(HTMLタグ)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>
    <h1>
    <center>入力画面</center>
    </h1>

    <p>
    記入上の注意は以下の通り
    <UL>
    <LI> 記入は日本語でお願いします。
    <LI> 一度送信すると、訂正できません
    </UL>

    <pre>
    (c) この Web ページの無断引用はご遠慮ください
    </pre>
</f:view>
</body>
</html>
図. index.jsp の例(HTMLタグ)

Managed Bean 名の属性値の表示

Managed Bean 名の属性値の表示は簡単です。

[image]

図. 動作画面の例(Managed Bean 名の属性値の表示)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>
</head>

<body>
<f:view>

        レベル:
        <h:outputText value="#{regform.レベル}" />

</f:view>
</body>
</html>
図. index.jsp の例(Managed Bean 名の属性値の表示)

テーブル及びテーブルでのソート

単純なテーブル

  1. 1行分を保持するオブジェクトの DSO クラスを定義 (商品Dso.java)
  2. 上記 DSO クラスの ArrayList を保持するのクラスを定義 (テーブル.java)
  3. JSP では、 tomahawk の t:dataTable タグを使用。 column タグの中に「変数名.属性名」を記述するのが基本
  4. rowIndexVar を使って、「行番号」を格納する変数名を指定
  5. マウスオーバ、ダブルクリック t:dataTable タグの rowOnClick, rowOnDblClick 属性に、JavaScript を記述

    記述例

    rowOnClick="this.style.backgroundColor='#FFE0E0'"
    rowOnDblClick="this.style.backgroundColor='#FFC0C0'"

  6. コマンドリンク commandLink タグでは、action 属性で指定したメソッドが呼び出される。 updateActionLister タグでは、value 属性で指定した値を、property 属性で指定した Java Bean の属性に自動的にセットすることができる。 記述例は次の通り
    <t:commandLink action="#{action.doCommodityCommandLink}" immediate="true">
        <h:outputText value="#{commodity.id}"/>
        <t:updateActionListener property="#{commodityform.id}" value="#{commodity.id}" />
    </t:commandLink>

  7. コマンドボタン commandButton タグでは、action 属性で指定したメソッドが呼び出される。 updateActionLister タグでは、value 属性で指定した値を、property 属性で指定した Java Bean の属性に自動的にセットすることができる。 記述例は次の通り
    <t:commandButton action="#{action.doCommodityCommandButton}" immediate="true" value="選択">
        <h:outputText value="#{commodity.選択済み}"/>
        <t:updateActionListener property="#{commodityform.id}" value="#{commodity.id}" />
    </t:commandButton>


参考: http://svn.apache.org/repos/asf/myfaces/site/publish/tomahawk-project/tomahawk20/tagdoc/t_dataTable.html

[image]

図. 動作画面の例(テーブル)

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>

</head>

<body>
<f:view>
    <h:form id="table1">
        <t:dataTable styleClass="standardTable"
                var="commodity"
                value="#{datatable.商品テーブル}"
                preserveDataModel="true">

            <h:column>
                <f:facet name="header">
                    <h:outputText value="id"/>
                </f:facet>
                <!-- commandLink タグで、ボタンを付ける。ボタンのクリック時には、action 属性で指定したメソッドが呼び出される -->
                <t:commandLink action="#{action.doCommodityCommandButton}" immediate="true" value="閲覧・修正">
                    <h:outputText value="#{commodity.id}"/>
                    <!--  updateActionLister タグで、value 属性で指定した値を、property 属性で指定した Java Bean の属性に自動的にセットすることができる -->
                    <t:updateActionListener property="#{commodityform.id}" value="#{commodity.id}" />
                </t:commandLink>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <h:outputText value="商品名"/>
                </f:facet>
                <h:outputText value="#{commodity.商品名}"/>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <h:outputText value="単価"/>
                </f:facet>
                <h:outputText value="#{commodity.単価}"/>
            </h:column>

        </t:dataTable>
    </h:form>
</f:view>
</body>
</html>
図. index.jsp の例(テーブル)

テーブルでのソート

  1. テーブル.java(下記) は、SortableList.java(下記)のサブクラスとする。
  2. SortableList.java は決まり文句
  3. テーブル.java は下記のように調整

参考

<%@ page contentType="text/html; charset=Shift_JIS" %>
<%@ taglib uri="http://java.sun.com/jsf/html" prefix="h" %>
<%@ taglib uri="http://java.sun.com/jsf/core" prefix="f" %>
<%@ taglib uri="https://myfaces.apache.org/tomahawk" prefix="t" %>

<html>
<head>
    <title></title>

</head>

<body>
<f:view>
    <h:form id="table1">
        <t:dataTable styleClass="standardTable"
                cellpadding="1"
                cellspacing="0"
                width="100%"
                border="1"
                var="commodity"
                value="#{datatable.商品テーブル}"
                rowIndexVar="rowIndex"
                rowOnClick="this.style.backgroundColor='#FFE0E0'"
                rowOnDblClick="this.style.backgroundColor='#FFC0C0'"
                sortColumn="#{datatable.sort}"
                sortAscending="#{datatable.ascending}"
                preserveDataModel="true"
                preserveSort="true">

            <h:column>
                <!-- commandButton タグで、ボタンを付ける。ボタンのクリック時には、action 属性で指定したメソッドが呼び出される -->
                <t:commandButton action="#{action.doCommodityCommandButton}" immediate="true" value="選択">
                    <h:outputText value="#{commodity.選択済み}"/>
                    <!--  updateActionLister タグで、value 属性で指定した値を、property 属性で指定した Java Bean の属性に自動的にセットすることができる -->
                    <t:updateActionListener property="#{commodityform.行番号}" value="#{rowIndex}" />
                </t:commandButton>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <t:commandSortHeader arrow="true" immediate="true" columnName="id" >
                        <h:outputText value="id"/>
                    </t:commandSortHeader>
                </f:facet>

                <!-- commandLink タグで、リンクを付ける。リンクのクリック時には、action 属性で指定したメソッドが呼び出される -->
                <t:commandLink action="#{action.doCommodityCommandLink}" immediate="true">
                    <h:outputText value="#{commodity.id}"/>
                    <!--  updateActionLister タグで、value 属性で指定した値を、property 属性で指定した Java Bean の属性に自動的にセットすることができる -->
                    <t:updateActionListener property="#{commodityform.id}" value="#{commodity.id}" />
                </t:commandLink>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <t:commandSortHeader arrow="true" columnName="商品名">
                        <h:outputText value="商品名"/>
                    </t:commandSortHeader>
                </f:facet>
                <h:outputText value="#{commodity.商品名}"/>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <t:commandSortHeader arrow="true" columnName="単価">
                        <h:outputText value="単価"/>
                    </t:commandSortHeader>
                </f:facet>
                <h:outputText value="#{commodity.単価}"/>
            </h:column>

            <h:column>
                <f:facet name="header">
                    <t:commandSortHeader arrow="true" columnName="野菜か">
                        <h:outputText value="野菜か"/>
                    </t:commandSortHeader>
                </f:facet>
                <h:outputText value="#{commodity.野菜か}"/>
            </h:column>

        </t:dataTable>
    </h:form>
    <p>
  クリック、ダブルクリックによって色が付き、目印になります (ソートしたり、画面を再表示すると、色が消えます)。
    <p>
    例えば、「野菜か」を第一に、「単価」を第二にして、ソートをしたいときには、先に「単価」をクリックし、その後「野菜か」をクリックしてください。
</f:view>
</body>
</html>

図. index.jsp の例(テーブルでのソート)

上記の index.jsp を動作させるためのファイル

手順は、 JavaServer Faces サンプルプログラムのWebページに記述の手順と同じ。

アクション.java

パッケージ hoge.hoge.com のクラスとして作る コマンドボタン用のアクション・コントーラ・メソッドの見本

package hoge.hoge.com;

import javax.faces.context.ExternalContext;
import javax.faces.context.FacesContext;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpSession;

public class アクション {
    private 登録フォーム regform;
    private 商品フォーム commodityform;
    private テーブル datatable;

    // 以下のうち,セッターはJSFが呼び出す.
    public 登録フォーム getRegform() {
        return regform;
    }
    public void setRegform(登録フォーム regform) {
        this.regform = regform;
    }
    public 商品フォーム getCommodityform() {
        return commodityform;
    }
    public void setCommodityform(商品フォーム commodityform) {
        this.commodityform = commodityform;
    }
    public テーブル getDatatable() {
        return datatable;
    }
    public void setDatatable(テーブル datatable) {
        this.datatable = datatable;
    }

    // アクション・コントロール・メソッド
    public String doRegistration() {
        // JFS で HttpServletRequest, HttpSession を取得するときの決まり文句
        ExternalContext context = FacesContext.getCurrentInstance().getExternalContext();
        HttpServletRequest request = (HttpServletRequest)context.getRequest();
        HttpSession session = request.getSession();

        //登録処理
        System.out.println("アクション・コントロール・メソッド doRegistration() が呼び出されました");

        // いつも成功
        return "success";
        // return "failure";
    }

    public String doCommodityCommandButton() {
        // JFS で HttpServletRequest, HttpSession を取得するときの決まり文句
        ExternalContext context = FacesContext.getCurrentInstance().getExternalContext();
        HttpServletRequest request = (HttpServletRequest)context.getRequest();
        HttpSession session = request.getSession();

        //登録処理
        // System.out.println("アクション・コントロール・メソッドdoCommodityButton() が呼び出されました。commodityform.行番号 の値は");
        // System.out.println( getCommodityform().get行番号() );
        this.getDatatable().get商品テーブル().get( getCommodityform().get行番号() ).toggle選択済み();;

        // いつも成功
        return "success";
        // return "failure";
    }

    public String doCommodityCommandLink() {
        // JFS で HttpServletRequest, HttpSession を取得するときの決まり文句
        ExternalContext context = FacesContext.getCurrentInstance().getExternalContext();
        HttpServletRequest request = (HttpServletRequest)context.getRequest();
        HttpSession session = request.getSession();

        //登録処理
        System.out.println("アクション・コントロール・メソッドdoCommodityLink() が呼び出されました。commodityform.id の値は");
        System.out.println( getCommodityform().getId() );

        // いつも成功
        return "success";
        // return "failure";
    }
}

SortableList.java

Apache Software Foundation (ASF) 配布のものを使用

/*
 * Licensed to the Apache Software Foundation (ASF) under one
 * or more contributor license agreements.  See the NOTICE file
 * distributed with this work for additional information
 * regarding copyright ownership.  The ASF licenses this file
 * to you under the Apache License, Version 2.0 (the
 * "License"); you may not use this file except in compliance
 * with the License.  You may obtain a copy of the License at
 *
 *   http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing,
 * software distributed under the License is distributed on an
 * "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY
 * KIND, either express or implied.  See the License for the
 * specific language governing permissions and limitations
 * under the License.
 */
// package org.apache.myfaces.examples.listexample;
package hoge.hoge.com;

/**
 * Convenient base class for sortable lists.
 * @author Thomas Spiegl (latest modification by $Author: grantsmith $)
 * @version $Revision: 472610 $ $Date: 2006-11-08 20:46:34 +0100 (Wed, 08 Nov 2006) $
 */
public abstract class SortableList
{
    private String _sort;
    private boolean _ascending;

    protected SortableList(String defaultSortColumn)
    {
        _sort = defaultSortColumn;
        _ascending = isDefaultAscending(defaultSortColumn);
    }

    /**
     * Sort the list.
     */
    protected abstract void sort(String column, boolean ascending);

    /**
     * Is the default sort direction for the given column "ascending" ?
     */
    protected abstract boolean isDefaultAscending(String sortColumn);


    public void sort(String sortColumn)
    {
        if (sortColumn == null)
        {
            throw new IllegalArgumentException("Argument sortColumn must not be null.");
        }

        if (_sort.equals(sortColumn))
        {
            //current sort equals new sortColumn -> reverse sort order
            _ascending = !_ascending;
        }
        else
        {
            //sort new column in default direction
            _sort = sortColumn;
            _ascending = isDefaultAscending(_sort);
        }

        sort(_sort, _ascending);
    }

    public String getSort()
    {
        return _sort;
    }

    public void setSort(String sort)
    {
        _sort = sort;
    }

    public boolean isAscending()
    {
        return _ascending;
    }

    public void setAscending(boolean ascending)
    {
        _ascending = ascending;
    }
}

テーブル.java

パッケージ hoge.hoge.com のクラスとして作る

t:dataTable タグのテスト用

package hoge.hoge.com;

import java.util.ArrayList;
import java.util.Collections;
import java.util.Comparator;

public class テーブル extends SortableList {
    private static ArrayList<商品Dso> 商品テーブル = null;

    public テーブル() {
        // ソートすべきカラムの既定値
        super("id");
    }

    public ArrayList<商品Dso> get商品テーブル() {
        if (商品テーブル == null) {
            商品テーブル = new ArrayList<商品Dso>();
            商品テーブル.add(new 商品Dso("1001","りんご", "300円", "n"));
            商品テーブル.add(new 商品Dso("1002","白菜", "180円", "y"));
            商品テーブル.add(new 商品Dso("1003","にんじん", "100円", "y"));
            商品テーブル.add(new 商品Dso("1004","キャベツ", "450円", "y"));
            商品テーブル.add(new 商品Dso("1005","みかん", "130円", "n"));
            商品テーブル.add(new 商品Dso("1006","いちご", "650円", "n"));
        }
        // ソートの実行
        sort(getSort(), isAscending());
        return 商品テーブル;
    }

    protected boolean isDefaultAscending(String sortColumn)
    {
        return true;
    }

    protected void sort(final String column, final boolean ascending)
    {
        Comparator comparator = new Comparator()
        {
            public int compare(Object o1, Object o2)
            {
                商品Dso c1 = (商品Dso)o1;
                商品Dso c2 = (商品Dso)o2;
                if (column == null)
                {
                    return 0;
                }
                // 各属性での比較 (属性すべてを記述)
                if (column.equals("id"))
                {
                    return ascending ? c1.getId().compareTo(c2.getId()) : c2.getId().compareTo(c1.getId());
                }
                else if (column.equals("商品名"))
                {
                    return ascending ? c1.get商品名().compareTo(c2.get商品名()) : c2.get商品名().compareTo(c1.get商品名());
                }
                else if (column.equals("単価"))
                {
                    return ascending ? c1.get単価().compareTo(c2.get単価()) : c2.get単価().compareTo(c1.get単価());
                }
                else if (column.equals("野菜か"))
                {
                    return ascending ? c1.get野菜か().compareTo(c2.get野菜か()) : c2.get野菜か().compareTo(c1.get野菜か());
                }
                else return 0;
            }
        };
        // 第一引数には属性名を記述
        Collections.sort(商品テーブル, comparator);
    }
}

商品Dso.java

パッケージ hoge.hoge.com のクラスとして作る

t:dataTable タグのテスト用

package hoge.hoge.com;

import java.io.Serializable;

// Dso は 「Serializable」である必要がある(DataTable での表示等のため)
public class 商品Dso implements Serializable {
    private static final long serialVersionUID = 1L;
    private String id = null;
    private String 商品名 = null;
    private String 単価 = null;
    private String 野菜か = null;
    // 「選択済み」は JSF での処理用(チェックボックスでチェックしたかの情報)
    private String 選択済み = "□";
    public 商品Dso(String id, String 商品名, String 単価, String 野菜か) {
        super();
        this.id = id;
        this.商品名 = 商品名;
        this.単価 = 単価;
        this.野菜か = 野菜か;
    }
    public String getId() {
        return id;
    }
    public void setId(String id) {
        this.id = id;
    }
    public String get商品名() {
        return 商品名;
    }
    public void set商品名(String 商品名) {
        this.商品名 = 商品名;
    }
    public String get単価() {
        return 単価;
    }
    public void set単価(String 単価) {
        this.単価 = 単価;
    }
    public String get野菜か() {
        return 野菜か;
    }
    public void set野菜か(String 野菜か) {
        this.野菜か = 野菜か;
    }
    public String get選択済み() {
        return 選択済み;
    }
    public void set選択済み(String 選択済み) {
        this.選択済み = 選択済み;
    }
    public void toggle選択済み() {
        if ( this.選択済み.equals("□") ) {
            this.set選択済み("■");
        }
        else if ( this.選択済み.equals("■") ) {
            this.set選択済み("□");
        }
    }
}

商品フォーム.java

パッケージ hoge.hoge.com のクラスとして作る

フォームデータが入る

package hoge.hoge.com;

public class 商品フォーム {
    private String id = null;
    private int 行番号 = -1;

    public String getId() {
        return id;
    }

    public void setId(String id) {
        this.id = id;
    }

    public int get行番号() {
        return 行番号;
    }

    public void set行番号(int 行番号) {
        this.行番号 = 行番号;
    }
}

登録フォーム.java

パッケージ hoge.hoge.com のクラスとして作る

フォームデータが入る

package hoge.hoge.com;

import java.util.List;

public class 登録フォーム {
    private String ユーザ名 = null;
    private java.util.Date 発生日;
    private String 場所 = null;
    private List<String> 種類 = null;
    private String レベル = null;
    private boolean 処理済みか = false;
    private String 感想 = null;

    public String getユーザ名() {
        return ユーザ名;
    }

    public void setユーザ名(String ユーザ名) {
        this.ユーザ名 = ユーザ名;
    }

    public java.util.Date get発生日() {
        return 発生日;
    }

    public void set発生日(java.util.Date 発生日) {
        this.発生日 = 発生日;
    }

    public String get場所() {
        return 場所;
    }

    public void set場所(String 場所) {
        this.場所 = 場所;
    }

    public List<String> get種類() {
        return 種類;
    }

    public void set種類(List<String> 種類) {
        this.種類 = 種類;
    }

    public String getレベル() {
        return レベル;
    }

    public void setレベル(String レベル) {
        this.レベル = レベル;
    }

    public boolean is処理済みか() {
        return 処理済みか;
    }

    public void set処理済みか(boolean 処理済みか) {
        this.処理済みか = 処理済みか;
    }

    public String get感想() {
        return 感想;
    }

    public void set感想(String 感想) {
        this.感想 = 感想;
    }
}

表示項目マスタ.java

パッケージ hoge.hoge.com のクラスとして作る selectItems で使用

package hoge.hoge.com;

import java.util.ArrayList;
import javax.faces.model.SelectItem;

public class 表示項目マスタ {
    private ArrayList<SelectItem> 種類 = null;

    public ArrayList<SelectItem> get種類() {
        if (種類 == null) {
            種類 = new ArrayList<SelectItem>();
            // "値", "(表示される)ラベル" の順で記述
            種類.add(new SelectItem("楽しい出来事","楽しい出来事"));
            種類.add(new SelectItem("悲しい出来事","悲しい出来事"));
            種類.add(new SelectItem("重要","重要"));
            種類.add(new SelectItem("影響大","影響大"));
        }
        return 種類;
    }

}

faces-config.xml

<?xml version="1.0"?>
<!DOCTYPE faces-config PUBLIC "-//Sun Microsystems, Inc.//DTD JavaServer Faces Config 1.1//EN" "http://java.sun.com/dtd/web-facesconfig_1_1.dtd">
<faces-config>
    <managed-bean>
        <managed-bean-name>regform</managed-bean-name>
        <managed-bean-class>hoge.hoge.com.登録フォーム</managed-bean-class>
        <managed-bean-scope>session</managed-bean-scope>
    </managed-bean>
    <managed-bean>
        <managed-bean-name>commodityform</managed-bean-name>
        <managed-bean-class>hoge.hoge.com.商品フォーム</managed-bean-class>
        <managed-bean-scope>session</managed-bean-scope>
    </managed-bean>
    <managed-bean>
        <managed-bean-name>items</managed-bean-name>
        <managed-bean-class>hoge.hoge.com.表示項目マスタ</managed-bean-class>
        <managed-bean-scope>session</managed-bean-scope>
    </managed-bean>
        <managed-bean>
        <managed-bean-name>datatable</managed-bean-name>
        <managed-bean-class>hoge.hoge.com.テーブル</managed-bean-class>
        <managed-bean-scope>session</managed-bean-scope>
    </managed-bean>

    <managed-bean>
    <managed-bean-name>action</managed-bean-name>
    <managed-bean-class>hoge.hoge.com.アクション</managed-bean-class>
    <managed-bean-scope>session</managed-bean-scope>
       <managed-property>
        <property-name>regform</property-name>
        <property-class>hoge.hoge.com.登録フォーム</property-class>
        <value>#{regform}</value>
       </managed-property>
       <managed-property>
        <property-name>commodityform</property-name>
        <property-class>hoge.hoge.com.商品フォーム</property-class>
        <value>#{commodityform}</value>
       </managed-property>
              <managed-property>
        <property-name>datatable</property-name>
        <property-class>hoge.hoge.com.テーブル</property-class>
        <value>#{datatable}</value>
       </managed-property>
    </managed-bean>
</faces-config>

web.xml

Java Server Faces サンプルプログラムの Web ページ に記載の web.xml を使用
